C-Pro 4k AI
Laiatech

  • C-Pro AI

    ​​CTC-412/B

    4K PTZ video conferencing camera with artificial intelligence and auto-tracking for medium and large meeting rooms.

    Product sheet
    Contact Sales

4K clarity for sharper, more professional video conferences

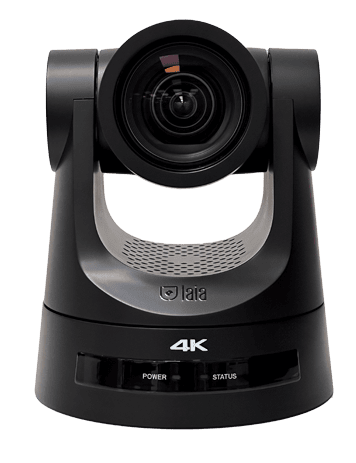

Bring every video call to life with the C-Pro AI PTZ Video Conferencing Camera (PN: CTC-412/B). Its 4K UHD image quality, 1/2.8-inch CMOS sensor, and 12x optical zoom capture every detail with exceptional clarity at up to 30 fps, ensuring that even presentations with graphics and numbers are displayed with maximum clarity.

It also ensures a more immersive and effective experience, in which all participants can see and understand each content effortlessly.

HDMI video output - 3G-SDI - USB3.0 - IP
Tracking modes: hybrid, zoned and presenter
4K quality
Multiple protocols

With Hybrid Tracking: precision and flexibility in every frame

Hybrid Tracking combines automatic tracking of people with the possibility of defining up to four preconfigured areas in the scene.

How does it work?

  • The camera maintains a general shot until it detects a subject.
  • When recognizing a face, it accurately tracks it in close-up until the person enters the predefined area.
  • Once inside, the camera adjusts the framing to the delimited fixed plane.
  • If the subject leaves the area, the camera will activate Presenter mode with custom tracking.

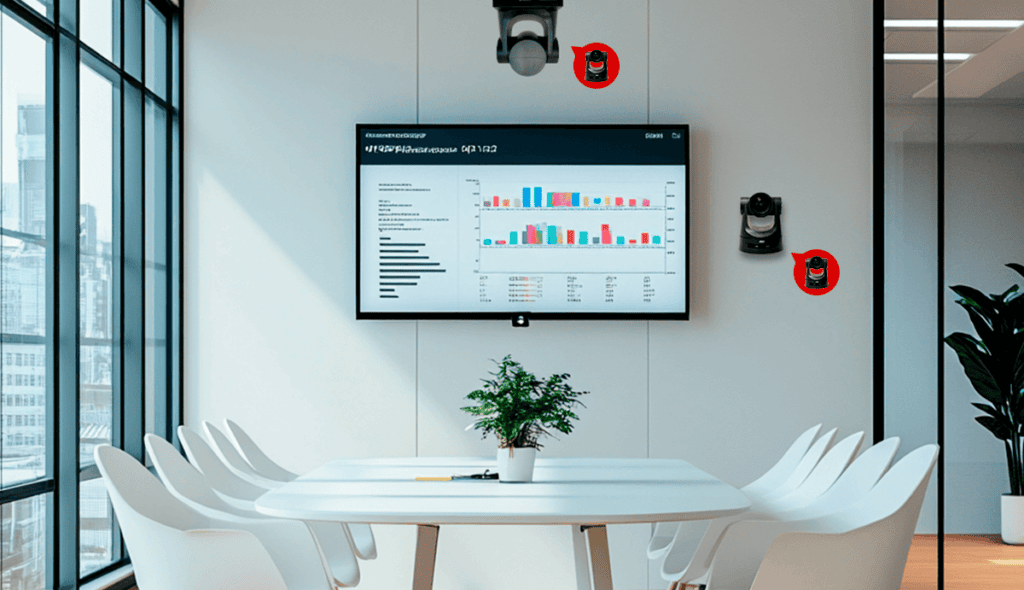

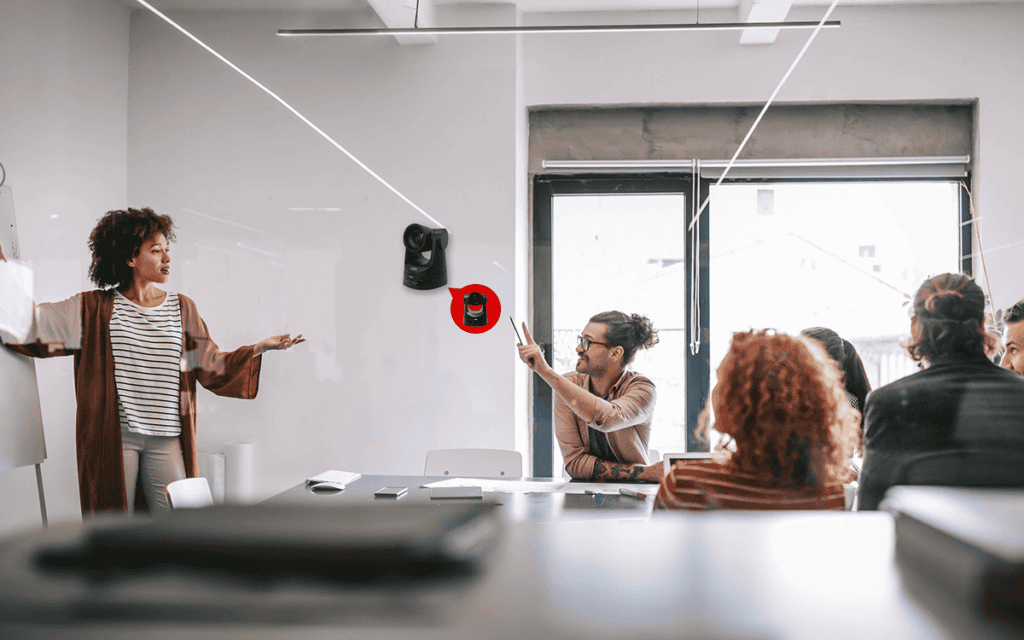

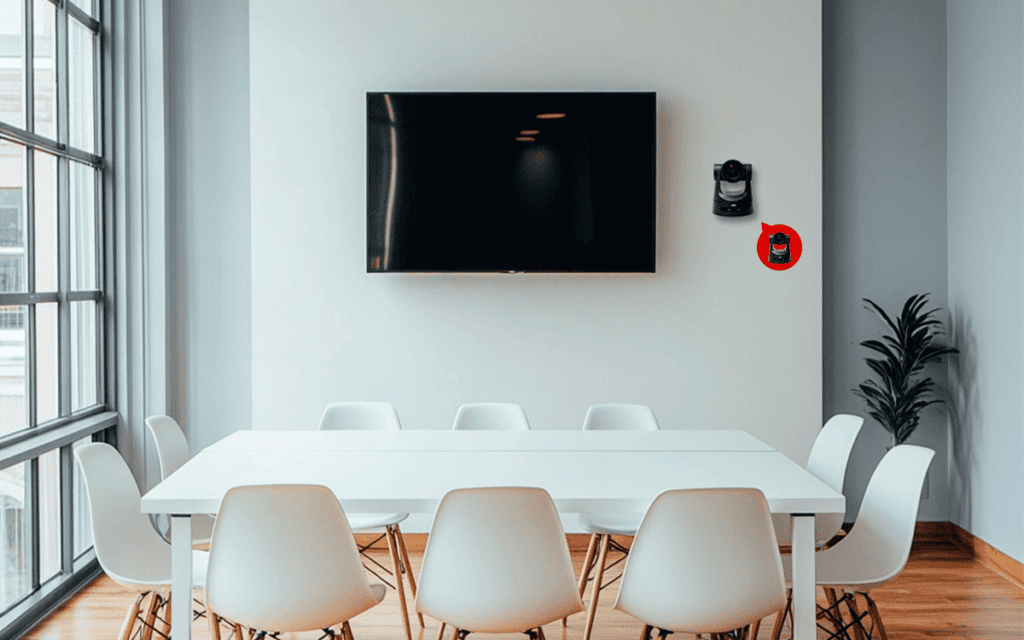

Find the perfect spot for your C-Pro AI camera

The C-Pro AI camera (Model No.: CTC-412/B) is designed for medium-sized meeting rooms accommodating 4 to 8 people; this video conferencing camera delivers a professional experience. Thanks to its 4K quality and 12x optical zoom, it is ideal for presentations that require displaying documents or any visual details with maximum clarity, even at long distances.

Streaming at the click of a button

Streaming in 4K is as simple as connecting the camera to a PC or Mac via HDMI, USB, or IP and immediately starting a live stream to streaming platforms such as Wowza or YouTube in 4K.

Cables included

The C-Pro AI camera (Part No.: CTC-412/B) comes with everything needed for installation and use: a Power Supply unit Power Supply a power cord, a 1.5-meter USB B to USB A cable, an RS232 control cable, and a remote control. It includes a wall mount with a camera mounting screw.

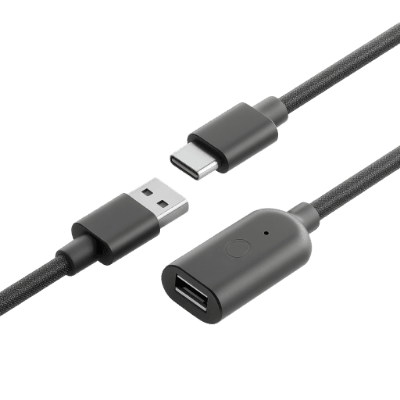

In case you need a longer extension cable, we have a 15m male to female USB extender. Consult prices and compatibility by clicking HERE.

Compatible cables

To ensure optimal performance of our C-Pro AI camera (Part No.: CTC-412/B), we have conducted tests to verify the compatibility of various cables with our equipment. You can check compatibility with our equipment in the “Frequently Asked Questionssection."


Privacy covers included

Privacy covers offer peace of mind and security in the digital world, but also protect the camera lens from scratches, dust or dirt.

Install your camera with Laia wall and ceiling brackets

With our Laia ceiling and wall mount you will be able to place your video conferencing camera in the place you prefer in your room. Get a professional quality support.

Wall bracket - accessory included
Ceiling bracket - optional accessory

Professional Support Warranty 2 years

The B-Hybrid camera range offers a free 2-year Professional Support warranty with 6-hour service for incidents, replacement in less than 10 days from receipt and support via help desk.

Learn More

Related products

C-Pro 12X

C-Pro 20X

C-Pro Voicetrack

C-Pro Bullet 4K AI

Specifications

General
Sensor: High quality 1/2.8" CMOS
Pixel: 8.3M (3840×2160)
Video signal: HDMI: 4KP30, 4KP25, 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50, 1080P59.94, 1080P29.97, 720P 59.94, 720P29.97; "P" refers to progressive scan. "i" refers to interlaced images. 3G-SDI: 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50, 1080P59.94, 1080P29.97, 720P59.94, 720P59.94; USB3.0: YUY2/NV12:1 920x1080P30, 1280x720P30, 1024x576P30, 800x600P30, 800x448P30, 640x360P30, 480x270P30, 320x180P30; MJPEG / H.26 / H.265MJPEG / H.265: 3840x2160P30, 2560x1440P, 1920x1080P30, 1600x896P30, 1280x720P30, 1024x576P30, 960x540P30, 800x600P30, 800x448P30, 720x576P30, 720x480P30, 640×360P30, 640x480P30, 480×270, 320×240P30, 352x288P30, 320xl76P30.USB3.0 Compatible with USB2.0: YUY2/NV12 supports 1920x1080P30, 1280x720P 25, 1024x576P30, 800x600P30,800x448P30, 640x360P30, 480x270P30, 320x180P30; MJ PEG/H.26H .265 supports 3840x2160P30,2560x1440P, 1920x1080P30, 1600x896P30, 1280x720P30 ,1024x576P30, 960x540P30, 800x600P30, 800x448P30, 720x576P30, 720x480P30, 640x360P30, 640x480P30, 480×270, 320x240P30, 352x288P30, 320x176P30
Optical zoom: 12X, Digital zoom: X15
Angle: Horizontal: 6.5° (N) ~ 70.9° (W)
Iris opening: F1.8 ~ F2.8±5%, Iris: F1.8 ~ F11, closed
Minimum illumination: 0.5Lux(F1.8, AGC connected)
DNR: 2D&3D, SNR: >50dB
White balance: Auto/Manual/One-push/Specific color temperature
Focus mode: Auto/Manual/One-push
Shutter speed: 1/25 ~ 1/20000
Dynamic range: Off, 1 ~ 8
Video adjustment: Brightness, hue, saturation, contrast, contrast, sharpness, black and white mode, gamma curve
Privacy covers: Yes
Remote control: Yes

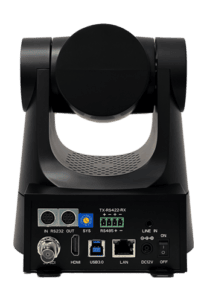

Rear panel
Interface: HDMI, 3G-SDI, LAN(POE), USB3.0 (Compatible with USB 2.0), A-IN, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), Power Supply DC12V
Output / video format: HDMI,3G-SDI,LAN,USB3.0 (Compatible with USB 2.0) / LAN:H.264、H.265 | USB 3.0:MJPG, H264, YUY2, NV12
audio input / output: Dual channel 3.5 mm linear input / HDMI,3G-SDI,LAN,USB3.0. (Compatible with USB 2.0) MC, MP3, G.711A
Network port: 10M/100M/1000M Ethernet port, POE power, audio and video output
Network protocol: RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, remote update, reset and reboot
Control interface: RS232-IN, RS232-OUT, RS422 compatible with RS485
Protocol port com: VISCA/Pelco-D/Pelco-P;Baud rate: 115200/38400/9600/4800/2400
Power Supply: HEC3800 Power Supply Adapter (DC12V) Input: AC110V~AC220V ;Output: DC12V/2.5A
Voltage/consumption: DC12V±10% / <12W

PTZ parameters
Tilt / turn: -170° ~ +170° / -30° ~ +90°
Tilt/rotate speed: 0.1°/s ~ 35°/s // 0.1°/s ~ 30°/s
Preset speed: Rotation: 35°/s, Inclination: 30°/s
Preset quantity: Up to 255 (10 in remote control)

Other parameters
Storage/use temp: -10°C ~ +70°C / -10°C ~ +50°C
Hum. storage / use: 20% ~ 95% / 20% ~ 80%
Dimensions: 143(L)mmX176mm(W)X169mm(H)
Weight: 1.3 Kg
Support: Includes wall bracket
Cable: RS232 200 cm, USB 3.0 150 cm
