Maximum visual precision for large collaborative rooms

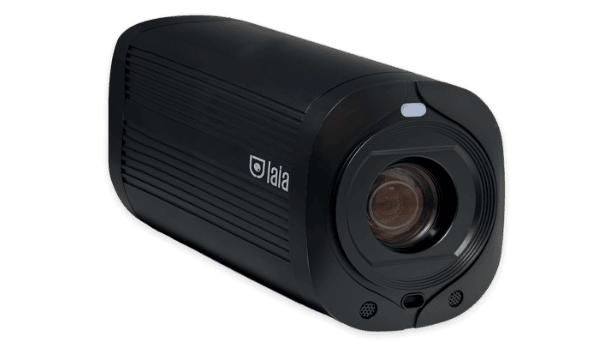

The Laia C-Pro BOX 20X camera combines exceptional image quality with maximum installation flexibility. Designed for professional environments where visual accuracy is essential, this camera delivers 4K Ultra HD performance at 30 fps with stunning depth, sharpness, and color.
Its 1/2.8″ SONY CMOS sensor and 20X optical zoom allow you to capture even the smallest detail, even at great distances, ensuring clear and sharp images at all times.
4K fixed camera
20X Optical Zoom
USB 3.0, HDMI, SDI and LAN
1/2.8" SONY CMOS sensor
Ideal for demanding environments

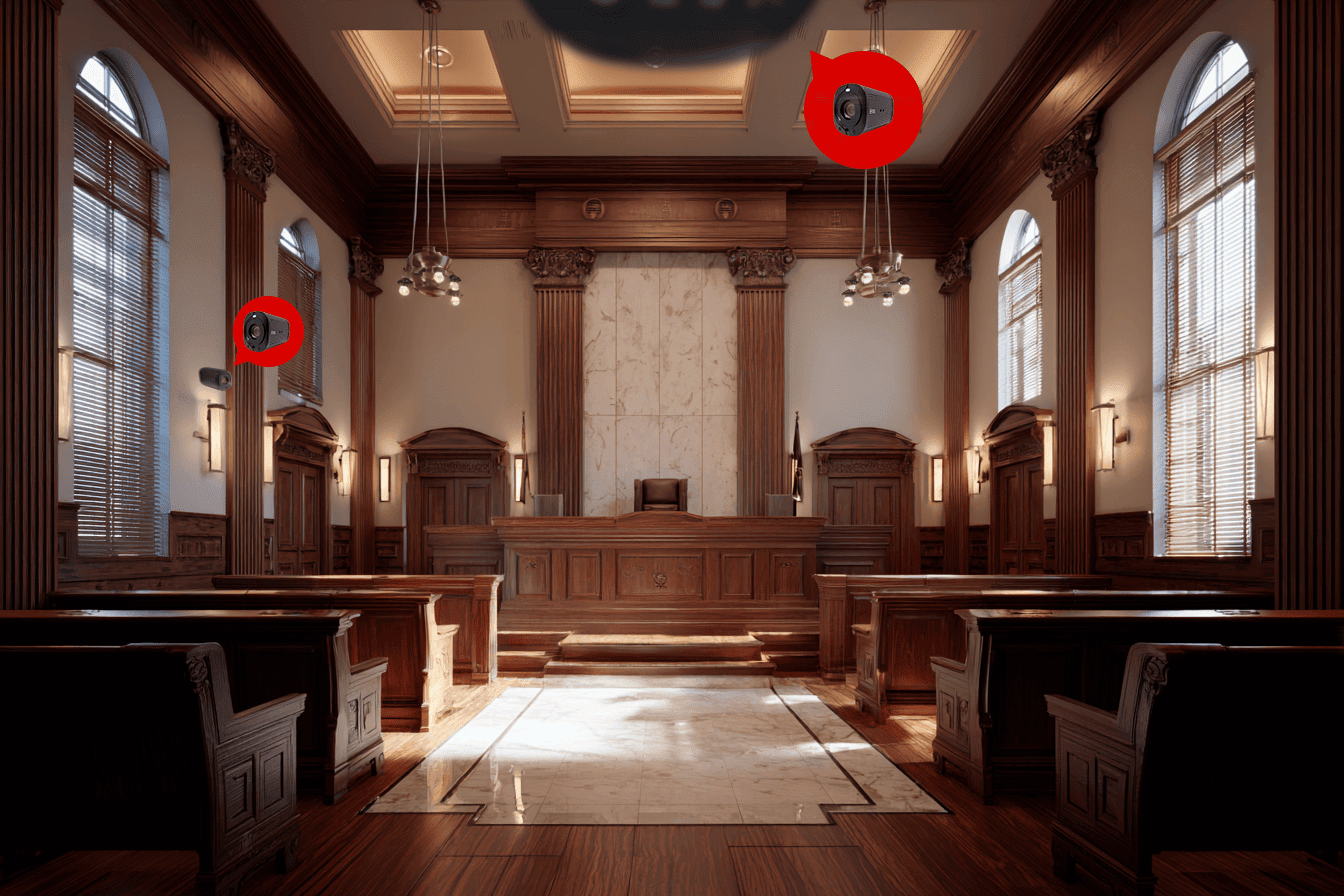

Ideal for conference rooms , professional broadcasts, courtrooms, and educational settings, the Laia C-Pro BOX 20X delivers a superior visual experience by combining power, connectivity, and precision in a compact and rugged design.
Main features
- With the 1/2.8-inch 4K CMOS sensor, video is streamed in Ultra HD over LAN, allowing even the presenter’s facial expressions and movements to be seen with great clarity.
- Remote control using Ethernet interface, RS232 / RS422 compatible with RS485.
- 4K at 30 fps and 1080p at 60 fps via HDMI and USB 3.0.
- It has a 20X Optical Zoom to enlarge the image.
- With PoE input, it simplifies cable installation by offering the possibility to connect a network cable for camera Power Supply , control and video output at the same time.
- Supports AAC audio encoding, better sound quality and better bandwidth.

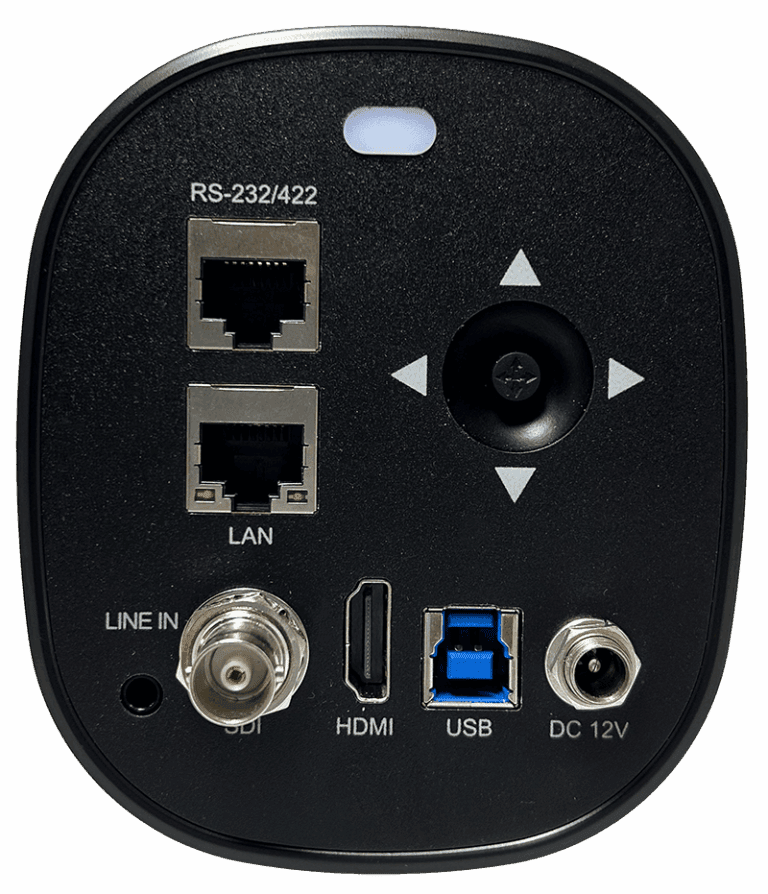

Connectivity and compatibility
BOX C-Pro BOX 20X offers a wide range of connectivity options—HDMI, USB 3.0, 3G-SDI, and LAN with PoE—making it ideal for integration into any audiovisual or video conferencing environment.
Related products
Specifications
Camera / Lens parameters
Image sensor: 1/2.8-inch 4K CMOS sensor
Pixels: 8.5 megapixels
Resolution: 4KP-30fps; 1080P-60fps
Video format: 4KP30/25, 1080P60/59.94/50, 1080P30/29.97/25, 720P60/50; USB 3.0 Interface MJPG/H264: 3840*2160, 1920*1080, 1280*720, 800*600, 640*480, 640*360, 320*240; SDI: 1080p60/59.94/50, 1080p30/29.97/25, 720p60/50
Horizontal angle of view: 58.7º (W) ~ 3.2º (T)
Focal length: 5.2 mm (W) ~ 104 mm (D) (0.2 inches ~ 4.09 inches)
Iris: Variable
Shutter speed: 1 to 1/8000
Digital zoom : 16X
Vertical and mirror flip: Supported
Minimum illumination : 0.1Lux(F1.8, AGC ON)
DNR: 2D﹠3D
White balance: Auto / Manual / One Push / Indoor / Outdoor
Focus : Auto / Manual
Video settings: Brightness, gain, saturation, chroma, contrast, sharpness, B&W mode, curve.
Exhibition: Automatic / Manual / Shutter Priority / Brightness Priority
Interface
Video output: HDMI (HDMI Type A), 3G-SDI, USB 3.0 (Compatible with USB 2.0) (USB-B3.0), IP (RJ45)
Video compression format: LAN: H.264, H.265 USB 3.0: MJPG, H264, YUY2
audio input: Analog. 3.5 mm stereo minijack
audio compression format: AAC
audio output: HDMI (HDMI Type A), USB 3.0 (USB-B), IP (RJ45)
USB protocol: UVC, UAC
Network interface: RJ45. 10/100/1000 Mbps Ethernet port.
Network protocols: HDMI (HDMI Type A), USB 3.0 (USB-B), IP (RJ45)
Control sockets: RS232/RS485 (Phoenix 5P IN)
Communication protocols: VISCA / Pelco-D / Pelco-P
Power outlet: HEC3800
Other parameters
Working voltage: DC 12 V 0.42A (max) or PoE 48 V 0.104A (max) (EU/USA Adapter)
Power consumption: 12W (max)
Storage temperature: 0°C to +40°C / -10°C to +60°C
Storage humidity: 20% to 80% / 20% to 95%
Dimensions (width x height x depth): 152 mm x 88 mm x 102 mm (5.98 inches x 3.46 inches x 4.02 inches)
Weight: 0.800 kg (1.76 lbs)
Screw hole size: 1/4 inch-20UNC x2
With tally light: Yes
Accessories supplied: Power Supply, USB 3.0 cable, user's manual.
Artificial Intelligence
Auto Tracking: Only with Laia AI Cam Control (included)
Gesture control: Only with Laia AI Cam Control (included)
