POWER · FLEXIBILITY · INTEGRATION
audio video technology that brings your meetings to life
Intelligent Audiovisual System Laia Intelligent Audiovisual System IAVS®) intelligently and automatically integrates our professional IP/PTZ cameras with leading microphone systems from Audio,Biamp,Nureva, Sennheiser, and Shure.
IAVS® presenters perfectly in focus at all times, delivering the professional 4K image from Laia PTZ cameras.
99
Laia Cameras
IP/PTZ
4
Devices
audio
NDI
Technology of
connectivity
UNLIMITED
Scalability
from the very beginning
IAVS® has the capacity to integrate up to 99 Laia IP/PTZ cameras and up to 3 audio devices, allowing for flexible configurations and adaptability to changing needs. Scalability is built in from the start, eliminating the need for additional hardware.
What does the system do?
- IAVS® positioning data from the microphones, identifies who is speaking, and controls the Laia cameras to automatically achieve the best framing. All behavior is defined via presets
Automated tracking
The system frames the speaker and keeps them perfectly in focus.
Smart Implementation
Manage all audiovisual sources in the room without manual intervention.
Real-time detection
Analyze the audio up to 4 professional microphone devices.
Grow with your space
Meeting rooms, large auditoriums. IAVS® One flexible configurations.
The host is always perfectly framed. Remote participants can see who is speaking at all times, thanks to the high-quality Laia cameras.
. The speaker who always stays focused: As soon as someone speaks, the system detects it and instantly pans the corresponding camera. The cameras adjust automatically: automatic framing, smooth panning, and coordinated camera cuts
. Adaptation to the context: Every room is different. IAVS® customized to fit your space and layout.
. Instant reaction: IAVS® audio video data in real time

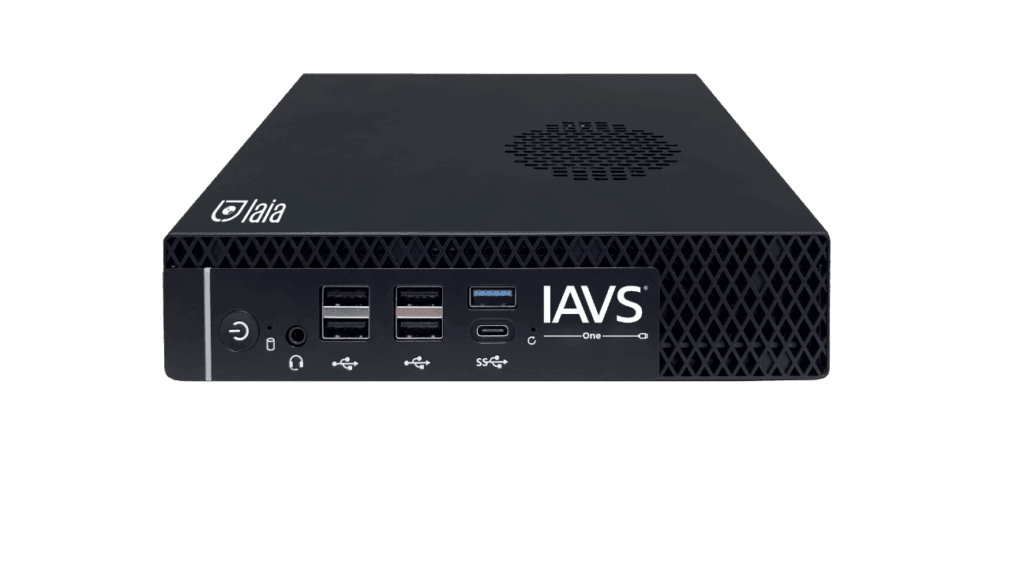

IAVS® One. Dedicated hardware.
IAVS® One is a device specifically designed to run the full range of IAVS® features in a stable and optimized manner for professional environments. It requires no installation on external devices: the system’s full capabilities are built into a single, ready-to-use hardware unit.
USB
ETHERNET
VIDEO
User experience: easy access from your computer
IAVS® One a capture device that you connect directly to your laptop or computer. As soon as you plug it in, the system recognizes your device and the room becomes available immediately.
USB 3.0 connection
Smooth video streaming
Maximum compatibility

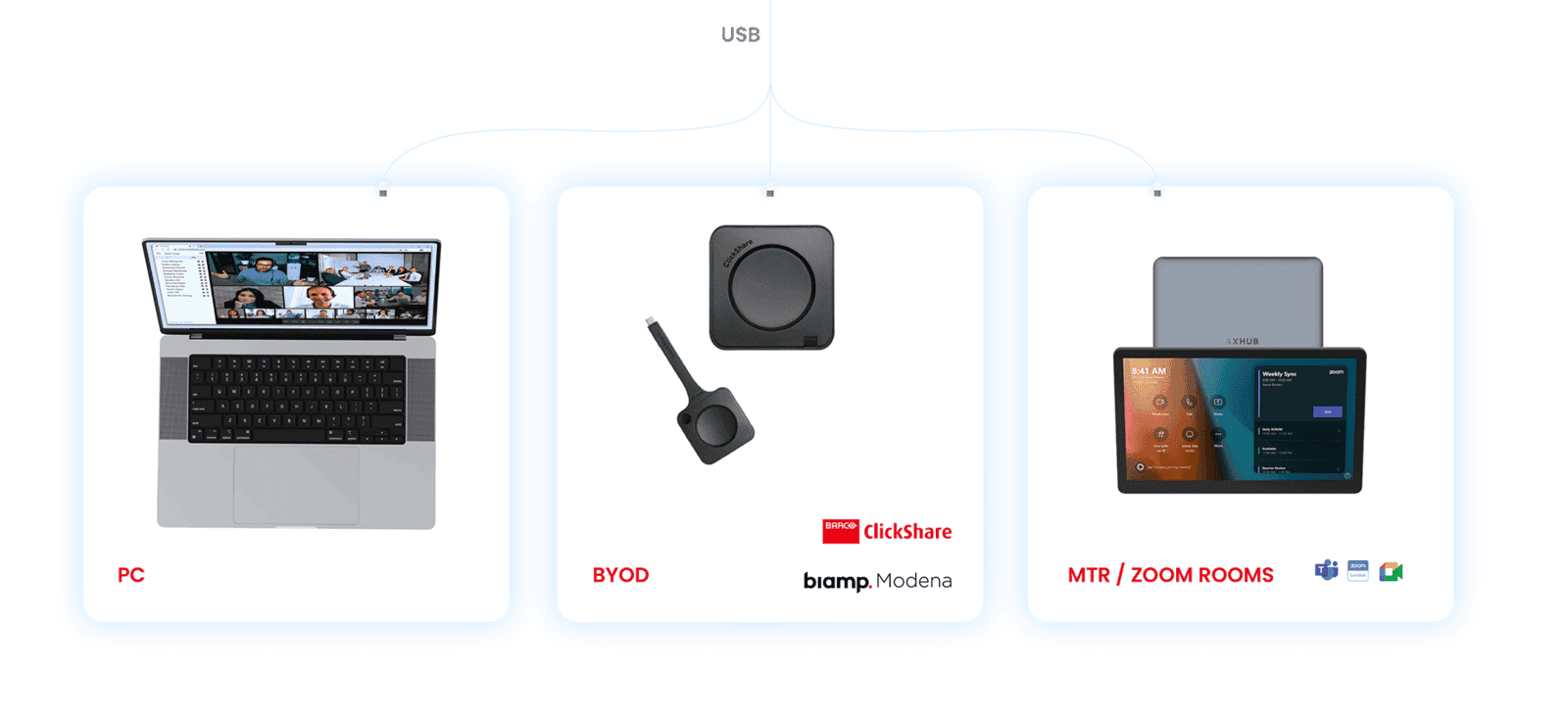

Works with your PC, and MTR systems

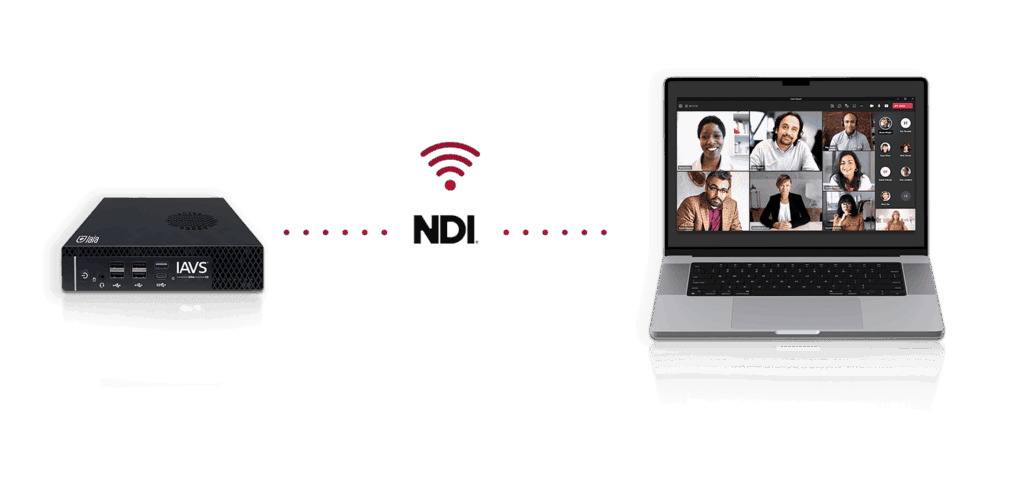

- IAVS® One directly via NDI®. There's nothing else to connect: just open the video call app, start the meeting, and the system is already up and running
Anywhere
All you need is Wi-Fi
At any meeting
Share your video
Fast and stableNDI:
High Quality and Low Latency
Audio Partners
ATND1061
The ATND1061 zone-controlled ceiling microphone array is an ideal solution for conference rooms, boardrooms, and meeting spaces of all sizes. The microphone can be used individually or in multiples (for larger meeting spaces) to capture all speakers in a room with clear, natural sound.
Nureva HDL310 and HDL410
The Nureva HDL310 system offers up to 20 voice detection zones, while the HDL410 extends coverage to 256 zones. This makes it possible to adapt the solution to any type of room, from small spaces to large auditoriums, always guaranteeing clear and accurate audio pickup.
Sennheiser TCC 2 and TCC M
The Sennheiser TCC 2 offers up to 32 voice detection zones, making it the perfect choice for medium to large rooms that require precision and full coverage. For smaller spaces, the TCC M delivers the same audio quality in a compact and versatile format.
Shure 920
The Shure takes voice pickup to the next level: up to 256 finely configurable zones, a range of 9 m², and total flexibility to adapt to any room. Designed for ceiling installation, it is the perfect choice for medium and large rooms that demand precision andpremium audio quality.
Parlé TCM-X
The Biamp Parlé TCM-X ceiling microphone is an audio capture solution audio meeting rooms, conference rooms, and collaboration spaces of any size. Its Beamtracking technology, featuring four 90-degree zones, provides full 360-degree coverage without the need for manual configuration.
Specifications
system
Resolutions and frame rates: Up to 4K at 30 fps (NDI). Up to 1080p at 60 fps (USB)
Devices: Up to 99 cameras and 4 microphones
Compatible brands:

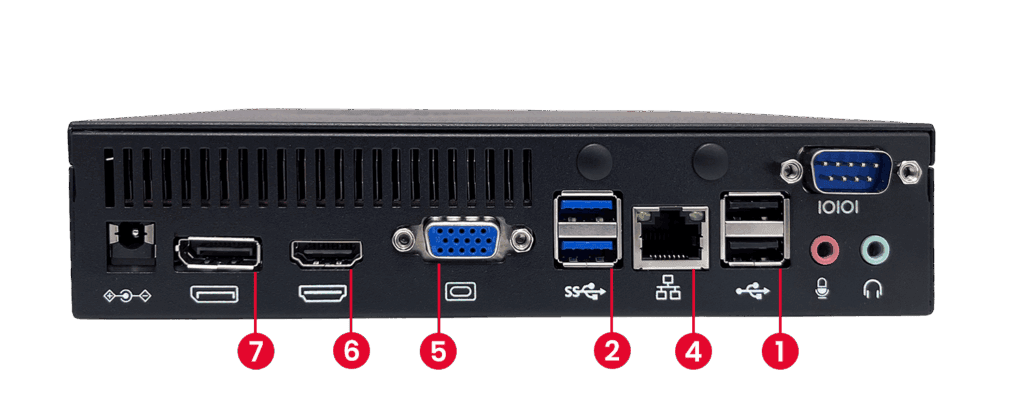

I/O interface
Video output: NDI® (RJ45, 1000 Mbps Ethernet)
HDMI to USB (with IAVS® card)
HDMI (Monitoring)
Entry protocols: NDI®, RTSP
Control protocols: VISCA
Network interface: LAN(RJ45, 1000 Mbps Ethernet)

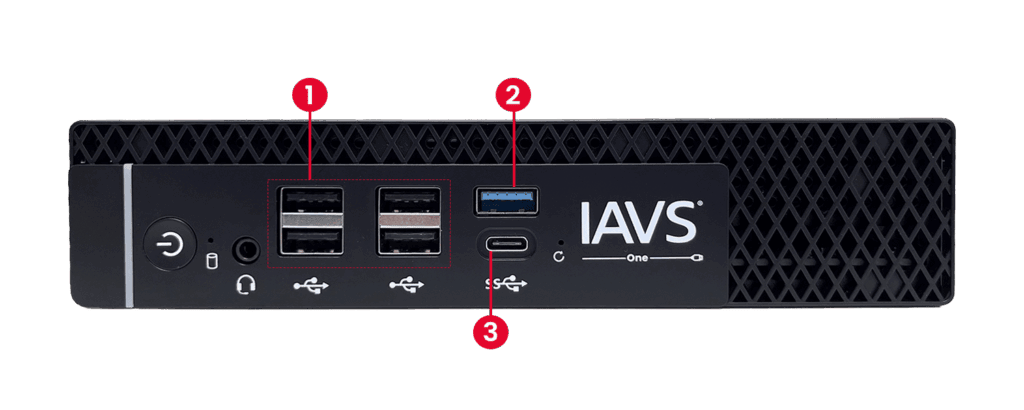

Ports: 2x USB-A 2.0, 2x USB-A 3.0, 1x USB-C General
Certifications: FCC, CE
general
Certifications: FCC, CE
Power Supply Requirements: 19 V DC / 6 A ±10%
Power consumption: < 40 W
Operating temperature: -10 °C to 50 °C | 14 °F to 122 °F
Operating humidity: 10%–90%
Dimensions (L x W x H): 185 x 180 x 40 mm | 7.3 x 7.1 x 1.6 in
Weight: 1.18 kg | 2.60 lb
Accessories included:
– IAVS® Card
– IAVS® Activation License
– Power Supply
– USB-A cable
Requirements (SOFTWARE VERSION)
Operating System: Microsoft Windows 10 or higher 64-bit
CPU: Core i5 gen 11 or higher
RAM: Minimum 8 GB
Screen resolution: 1280 x 960 pixels or higher
Compatible cameras: Laia IP cameras
Compatible brands:
